  Transport Boom Section For Mobile Hydraulic Crane
click on image for a larger view


Steel Fabrication: Transport Boom Section For Mobile Hydraulic Crane

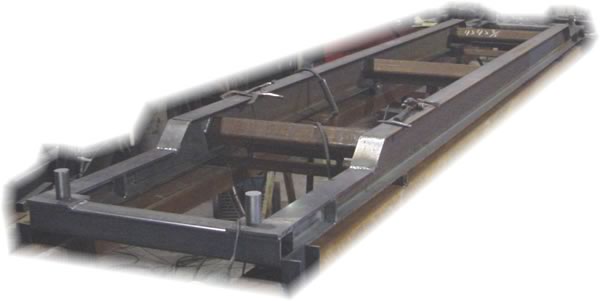

Project included fact finding and consultation at customer’s facility to determine job requirements, then prepared and submitted the final design drawings to the customer for approval. The 4' x 10' boom frame is constructed of I-beam, 4" square tubing, 1-1/4" round bar for locating pins and miscellaneous plates for gussets and supports. Operations involved for this project include our vertical band saw to cut tubing and round bar to length, plasma and laser cutting of gussets and supports, machining of mounting pins, welding, sandblasting, and finish painting, as well as various fixturing.

  Condensation Holding Tank For Steam Heating System
click on image for a larger view


Steel Fabrication: Condensation Holding Tank For Steam Heating System

Fab Tech V used a variety of materials and operations for this project. Materials include 7 gauge A36 P and O sheet, miscellaneous pipe couplings: ¼" through 2" half couplings, and 3: phoenix flanges. Operations included laser cutting of the shell and coupling holes, etching timing marks, welding, and hydro testing for leaks at 10 psi. This specific application is a no-pressure, non-code tank. Fab Tech also manufactures hydraulic tanks to customer specifications.

  8’ Diameter x 20” Long Fabricated Corrugated Pipe With Fittings For Drainage System
click on image for a larger view


Steel Fabrication: 8' Diameter x 20' Long Fabricated Corrugated Pipe With Fittings For Drainage System

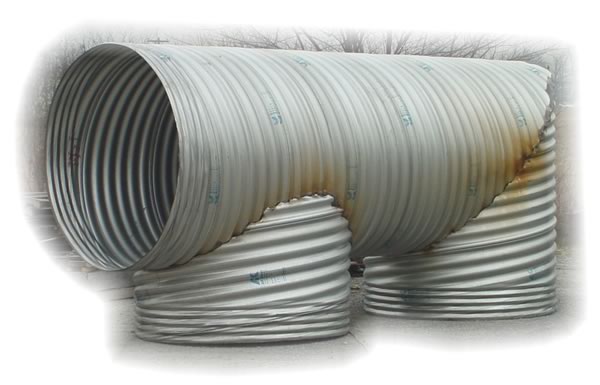

Fab Tech V initially supplied the customer with a cut list of parts. Our customer then provided the required parts for fabrication. Fab Tech V assembles, welds, and paints the drainage system. Ultimately, these corrugated fabrications are used for drainage systems, retention systems, and underground conduit to run municipal utilities such as cable, electric, phone and water systems.
  Laser Cut Turkey For Crafts Industry
click on image for a larger view


Steel Fabrication: Laser Cut Turkey For Crafts Industry

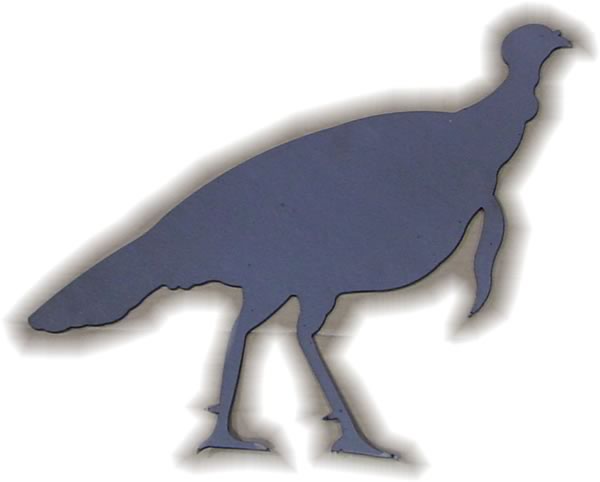

Fab Tech V laser cut the 11 gauge A36 P&O material to customer’s specifications. This is just one example of numerous products that we laser cut for the craft industry.
  Aluminum Nameplate

CNC Machining
click on image for a larger view


Steel Fabrication: Aluminum Nameplate

8" x 28" x 3/8" thick nameplate is machined in one of our machining centers (see photo of vertical machining center), which allows us to take a solid piece of aluminum and machine it into this elegant nameplate that will be used for a motor yacht.
  Turnkey Warehouse Fire Escape
click on image for a larger view


Steel Fabrication: Turnkey Warehouse Fire Escape

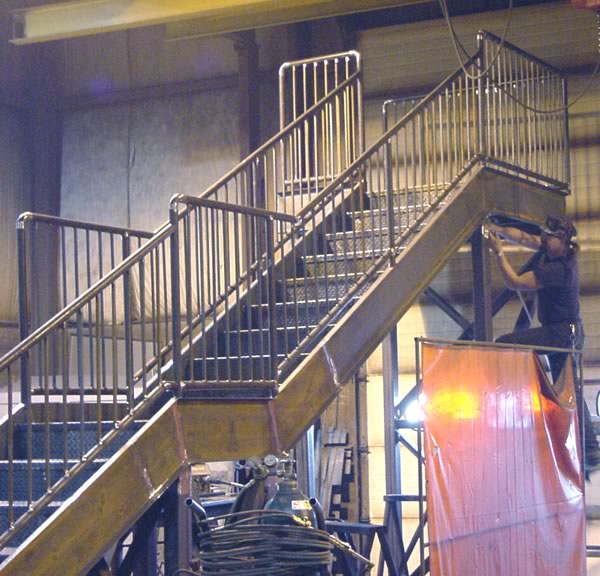

This free-standing warehouse fire escape consists of a fourteen foot rise with two landings. Stair was constructed using 12" stringer channel, 3/16" diamond plate tread, and 1-1/4" schedule 40 pipe for the handrail. Project included onsite measure to determine proper dimensions, stair layout and design, shearing and forming of treads, stringer layout and fabrication, saw and cope handrail, welding, yellow safety paint, and complete installation at the facility. This is a great example of Fab Tech’s ability to take a project from the absolute beginning to the absolute finish with minimal engineering expense to the customer.
  8 ft wide x 12 ft long Vehicle Mounted Ramp System
click on image for a larger view


Steel Fabrication: 8' wide x 12' long Vehicle Mounted Ramp System

These units are being used by homeland security and port authorities all over the world. They can be mounted on various vehicles such as Hummers, Excursions, RG12’s (pictured), Suburbans, F350 pickup trucks, etc. The materials used to manufacture this ramp system include aluminum sheet, aluminum grip strut, hydraulics and electronics, and stainless steel pipe. Operations to build this mobile ramp system include saw cutting of pipe for railings, laser cutting of sheet for sides of ramp, installation of hydraulics, configuration of the electronics, testing of the unit to ensure readiness, welding, fabrication, painting and installation on vehicle with final operational testing.
  Stainless Steel Laser Cut Angel Christmas Tree Ornament
click on image for a larger view


Steel Fabrication: Stainless Steel Laser Cut Angel Christmas Tree Ornament

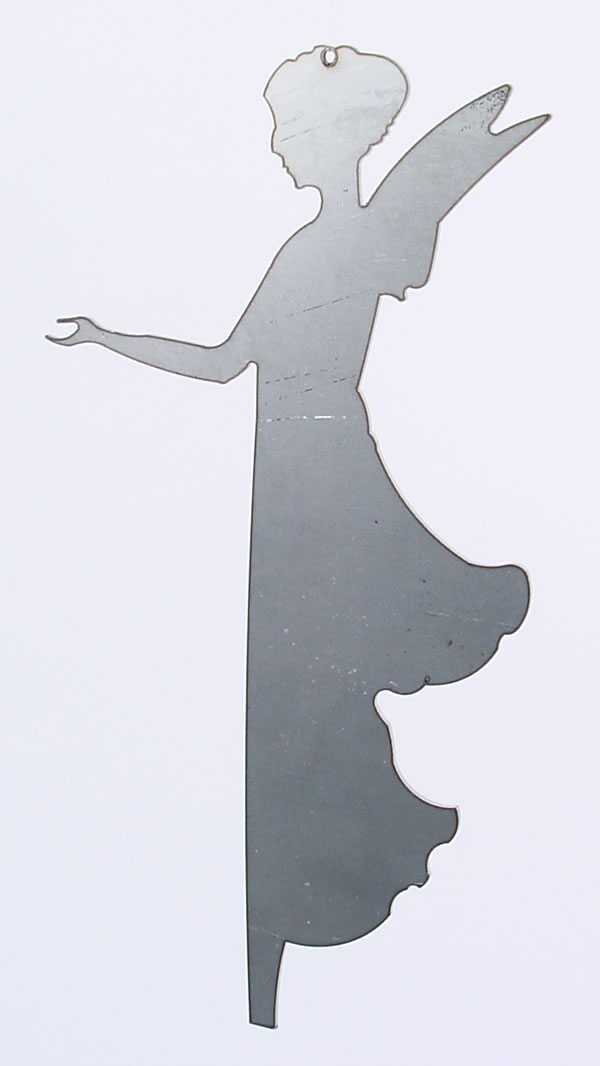

Fab Tech V laser cut this 6" x 3-1/4" ornament out of 18 gauge type 304 brushed stainless steel material to the customer’s specifications. This is just one example of numerous products that we are laser cutting for the craft industry.
  Three-Dimensional Stainless Steel Laser Cut Angel Christmas Tree Ornament
click on image for a larger view
Three-Dimensional Stainless Steel Laser Cut Angel Christmas Tree Ornament
click on image for a larger view


Steel Fabrication: Three-Dimensional Stainless Steel Laser Cut Angel Christmas Tree Ornament

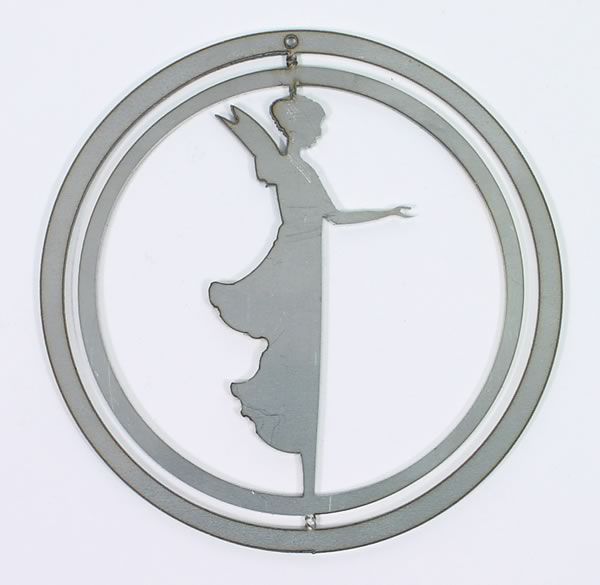

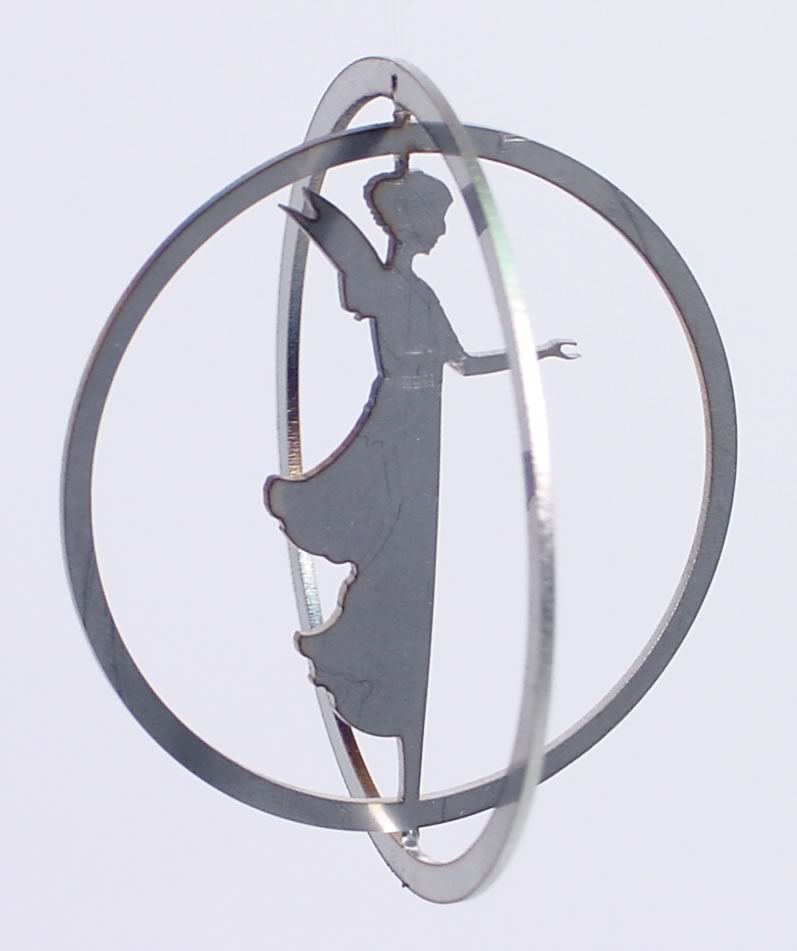

Fab Tech V laser cut this 2-3/4" ornament out of 18 gauge type 304 brushed stainless steel material to the customer’s specifications. Laser cutting allows for intricate design, which turns a flat laser cut piece into a three-dimensional ornament with just a simple twist of the outer ring. This is just one example of numerous products that we are laser cutting for the craft industry.
